Steamist is American made to the highest quality and comes with a exceptional warranty and reliable service support.
The SMP steam generator carries a Two-Year labour and Lifetime parts warranty.
Steamist is American made to the highest quality and comes with a exceptional warranty and reliable service support.
The SMP steam generator carries a Two-Year labour and Lifetime parts warranty.

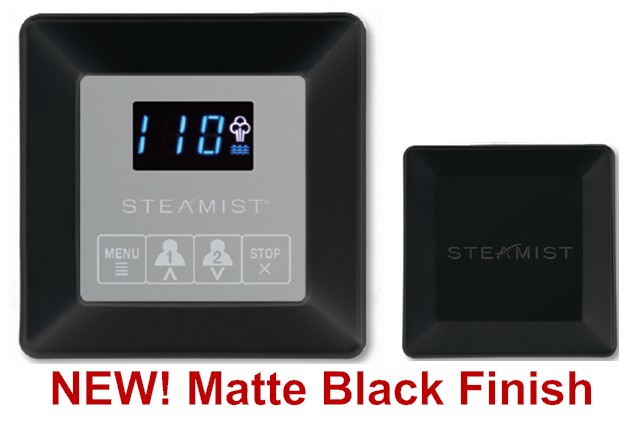

Ideal for those who just want to add Steam - without the bells & whistles.
Will not operate Total Sense Spa Options
Programmable for two user profiles with individual temperature/duration preferences.
Dual Temperature Sensor technology for superior temperature control.
Matching steamhead is included with control
Available finishes: Polished Chrome, Matte Black, Brushed Nickel, Polished Nickel, Polished Gold, Brushed Bronze, Oil Rubbed Bronze.
TSC 550 is a touch-screen, WiFi control that operates all of Steamist TSC Spa Options.
TSC-Modern style is available with Polished Chrome and Polished Nickel with black or white border.
TSC-Transitional style is available in Polished Chrome, Polished Nickel, Brushed Nickel, Polished Gold, Brushed Bronze, and Oil Rubbed Bronze. (Transitional is special order)
Matching steamhead comes with control.
AromaSense price includes the two most popular essences - Respitpry & Relax
Auto Drain is not required. Full warranty applies not withstanding
One matching steamhead is included with 250 or 550 steam control
Size: |
Steam Baths & Steam Showers |
Type: |
Steamist SMP Series |
Bench: |
SMP Series |
|
SMP Series : No selection $0.00 |
|
SMP Standard Controls: No selection $975.00 |
|
TSC-550 Controls: No selection $1560.00 |
|
Aroma Sense : No selection $0.00 |
|
Chroma Sense : No selection $0.00 |
|
Audio Sense : No selection $0.00 |
|
Speakers : No selection $0.00 |
|
Auto Drain : No selection $0.00 |
|
Extra Steamhead : No selection $0.00 |
Product Price: $0,00
Options amount:
Select a Tab Below for More Info
ES vs. SMP vs. TSG
Sizing Your Steam Generator
SMP Steam Installation Manuals
ChromaSense
AromaSense
AudioSense
ShowerSense
| Model No. | KW Rating | * Max. Cu.Ft. Range | Model Dimensions L"xW"xH" |
| SMP | 5 | 100 | 15 x 6 x 15.5 |
| ES SMP/TSG |
7.5 | 250 | 15 x 6 x 15.5 |
| ES SMP/TSG |
10 | 450 | 15" x 6" x 15.5" |
| ES SMP/TSG |
12 | 550 | 17.75 x 7.5 x 15.5" |
| ES SMP/TSG |
15 | 675 | 17.75 x 7.5 x 15.5" |
| ELITE SMP/TSG |
20 | 900 | 19 x 11.5" x 17" |
| ELITE SMP/TSG |
24 | 1100 | 19 x 11.5" x 17" |
| ELITE SMP/TSG |
15 | 675 | 19 x 11.5" x 17" |
Steam sizing is more than just cubic area. You must factor in things like wall finish (tile vs. stone), exterior walls and height to arrive at the correct "Adjusted Cubic Area".
To “size” the right generator, we start by asking for some basic information about the space you’ll be using for your steam shower.
Length x Width x Height (in feet) of the steam enclosure to determine cubic footage.
For optimum performance, ceiling height should not exceed 8'. The maximum recommended ceiling height is 10'.
a. L x W x H = _______
"Adjusted Cubic Area" is determined by a number of factors.
b. Wall material:
Tile: ceramic / porcelain / glass / glass block. Add 35% _______
Natural stone: Add 100% ______
c. Number of Exterior walls:
one wall: add 10% _____
two walls add 20% _____
d. Height: no additional factor for 8' or less:
9' height: add 15% _____
10' height: add 30% _____
Adjusted Cubic Area = a + b + c + d
(If there window or skylight, select next larger steamer)
Example 1: 5' x '5 x 8'. Porcelain tile, one exterior wall
5x5x8=200'. Tile +70', exterior wall +20' = 290' = SMP-7, 7.5 kW steamer
Example 1: 4' x '5 x 9'.
Marble 4x5x9=200'. Stone +200', 9' height +30' = 430' = SMP-10, 10 kW steamer
| Model No. | KW Rating | Max. Cu.Ft. Range | Volts/ Phase |
Min. Wire Size | Max. Fuse Size | Model Dimensions L"xW"xH" |
| SMP-5 | 5 | 100 | 240/1 | 10 | 30 | 15 x 6 x 15.5 |
| SMP-7 | 7.5 | 250 | 240/1 | 8 | 40 | 15 x 6 x 15.5 |
| SMP-10 | 10 | 450 | 240/1 | 6 | 50 | 15" x 6" x 15.5" |
| SMP-12 | 12 | 550 | 240/1 | 4 | 60 | 17.75 x 7.5 x 15.5" |
| SMP-15 | 15 | 675 | 240/1 | 3 | 80 | 17.75 x 7.5 x 15.5" |
** Wire/breaker size is recommendation only.
Consult your licensed electrician to confirm requirements.
Sizing Your Steam Generator
Steam sizing is more than just cubic area. You must factor in things like wall finish (tile vs. stone), exterior walls and height to arrive at the correct "Adjusted Cubic Area". For optimum performance, ceiling height should not exceed 8'. The maximum recommended ceiling height is 10'.
Standard residential voltage for North America is 240 volt, single (1) phase.
208 volt, single (1) phase and 3 phase models also available.
ChromaSense can turn you on to a spectrum of six steam shower lighting effects to bring about positive physical or psychological change. Compatible with the 550 Digital Steam Control.
ChromaSense Spa Option Control Module: Product Code TSCH.
Supplied with Light Fixture with Polished Chrome Trim Ring. Designer Finish Trim Rings also available.
With one shower light fixture, ChromaSense gives you the choice of selecting white light or six color effects in the steam shower.
Soulful |
Bliss |
Relax |
|
Creative |
Energize |
Harmony |
For centuries, aromatherapy has demonstrated remarkable therapeutic powers, from relaxing body and spirit to soothing respiration to sparking creativity. And only Steamist’s AromaSense adds 100% undiluted essential oils to the steam shower, ensuring your pure pleasure. Compatible with the 550 or 450 Digital Steam Control.
AromaSense Spa Option Control Module: Product Code TSA
Only Steamist’s AromaSense has a precision pump system that stores two different, easily replaceable essential oil canisters. allowing you to make your “aroma steam” selection without ever leaving your steam room. And only AromaSense uses pure undiluted oils, using just 1/4 of a drop at a time, so each canister will last for months. Five essential oils are available in 100 ml canisters (sold separately).
Two essential oil canisters should be purchased for installation with the AromaSense module.
With AudioSense you can enjoy your favorite music in the steam shower from your computer, smartphone, iPod tablet or any other Bluetooth-enabled music player. Compatible with the 550 or 450 Digital Control. 550 Digital Controls links directly to Pandora®, Spotify® or iHeart® music streaming services. Speakers sold separately.
A standard showerhead, handheld shower and body sprays require multiple controls and a cluttered, crowded enclosure.
With ShowerSense, one control covers all steam and shower functions, for a beautiful shower retreat without multiple shower controls.
Our Digital Shower System allows you to enjoy the benefits of ShowerSense without installing a steam generator and steamhead.
ShowerSense lets you enjoy the steam experience, plus your choice of three luxury shower options. The 550 Digital Control lets you select either of two different shower temperatures, and gives you total touchscreen command over all steam and shower functions, without the clutter of multiple shower controls. The ShowerSense Valve is easy to install in any position behind the wall, and is both temperature compensating and pressure-balanced to optimize user comfort.
ShowerSense Spa Option Valve: Product Code TSSH
Contact us to discuss or send a drawing of what you have in mind. There are many great new designer features being incorporated in saunas; inspired by online designer showcase websites. We will help you balance function vs. fashion. We will advise on how best to utilize the space. And just importantly, we will tell you if we think your design is bad or unworkable.
