Steam Sizing & Installation Manuals

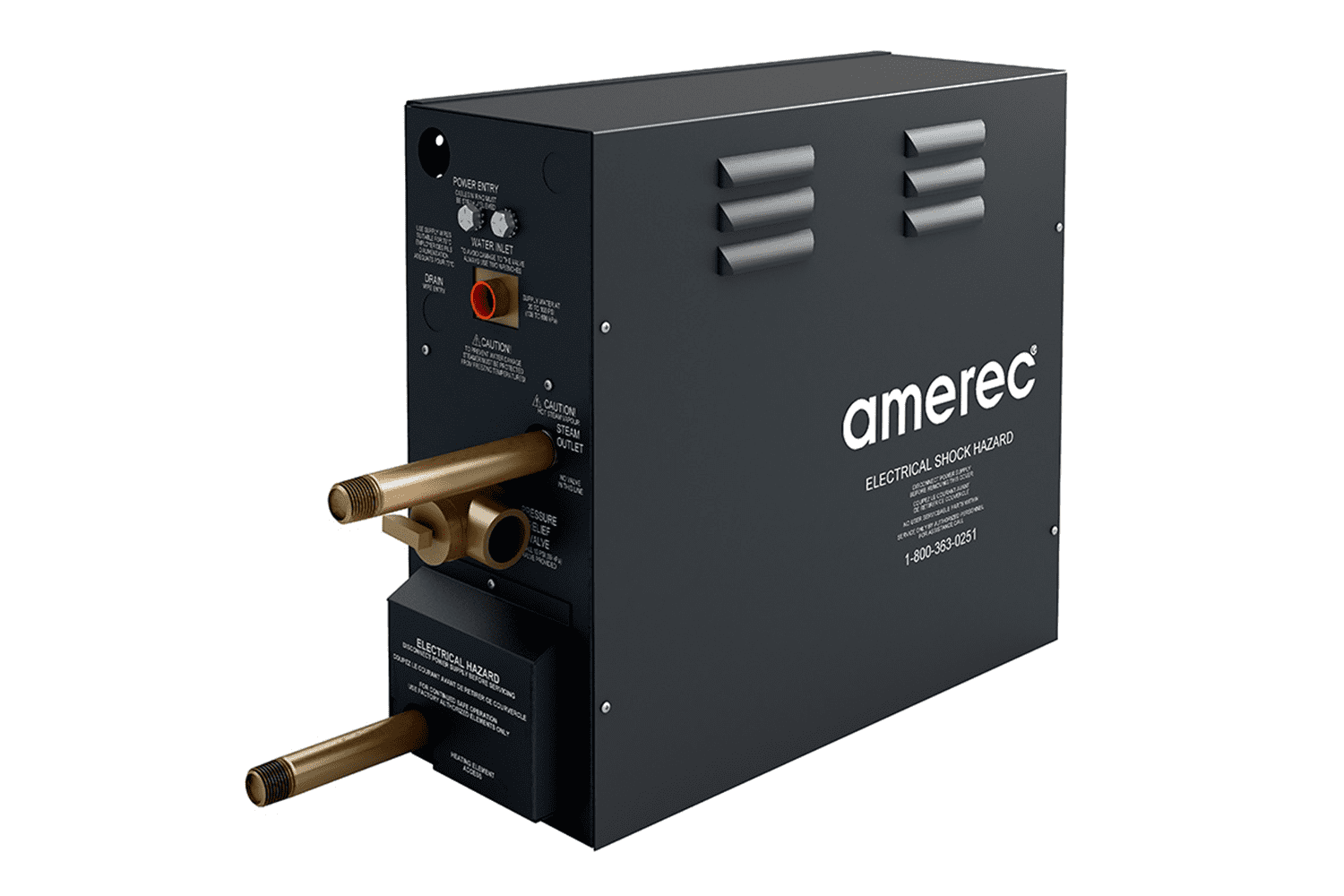

Amerec Steam Systems

Brochure & Installation Documents:    See Here

KW Rating Max. Cu. Ft. Range Volts/
Phase

**90c Copper
Wire Size

**Amps/
  Breaker
Model Dimensions L"xW"xH"
4.5 60-90 240/1 10 19/30 16.5 x 6.25 x 15.5
6 80-150 240/1 8 25/40 16.5 x 6.25 x 15.5
7.5 100-200 240/1 8 29/40 16.5 x 6.25 x 15.5
9 150-300 240/1 8 38/50 16.5 x 6.25 x 15.5

11 200-400 240/1 6 46/60 16.5 x 6.25 x 15.5
14 (2 circuits) 250-500 240/1 8  /  10 28/60    21/30 16.5 x 6.25 x 15.5



Systems Using Two (or three) Generators in Tandem
Rating Max. Cu. Ft. Range Volts/
Phase

**90c Copper
Wire Size

Amps/
Breaker
Model Dimensions L"xW"xH"
18 500-700 240/1 2 @ 9 kw. See above
22 700-900 240/1 2 @ 11 kw. See above
28 900-100 240/1 2 @ 14 kw. See above
30 1000-1300 240/1 2 @ 11 kw + 1 @ 9kw. See above
36 1200-1500 240/1 1 @ 14kw, 2 @ 11 kw. See above



Systems Using Two (or three) Generators in Tandem
Rating Max. Cu. Ft. Range Volts/
Phase

**90c Copper
Wire Size

Amps/
Breaker
18 500-700 240/1 2 @ 9 kw. See above
22 700-900 240/1 2 @ 11 kw. See above
28 900-100 240/1 2 @ 14 kw. See above
30 1000-1300 240/1 2 @ 11 kw + 1 @ 9kw. See above
36 1200-1500 240/1 1 @ 14kw, 2 @ 11 kw. See above



   ** Wire/breaker size is recommendation only.
 Consult your licensed electrician to confirm requirements.


Delta Simple-Steam

Brochure & Installation Documents:    See Here

KW Rating Max. Cu. Ft. Range
(factor x1.35 for tile)
Volts/
   Phase
**90c Copper
Wire Size
Amps/
  Breaker
Model Dimensions L"xW"xH"
7.5 101-250 (185 tile/glass) 240/1 8 31/40 15 x 6 x 15.5
10 251-450 (335 tile/glass) 240/1 6 42/50 15" x 6" x 15.5"
12 451-550 (410 tile/glass) 240/1 4 50/60 17.75 x 7.5 x 15.5"
15 551-675 (500 tile/glass 240/1 3 63/80 17.75 x 7.5 x 15.5"

** Wire/breaker size is recommendation only.
 Consult your licensed electrician to confirm requirements.
