Steam Baths & Steam Showers

Model       Range (cu ft)
  5kW              100
 7.5kW             250
  10kW              450
  12kW              550
  15kW              675

Sizing Your Steam Generator

Steam sizing is more than just cubic area.  You must factor in things like wall finish (tile vs. stone), exterior walls and height to arrive at the correct "Adjusted Cubic Area".

To “size” the right generator, we start by asking for some basic information about the space you’ll be using for your steam shower.

Length x Width x Height (in feet) of the steam enclosure to determine cubic footage.
For optimum performance, ceiling height should not exceed 8'. The maximum recommended ceiling height is 10'.

a.  L x W x H = _______
"Adjusted Cubic Area" is determined by a number of factors.

b.  Wall material:
Tile: ceramic / porcelain / glass / glass block. Add 35% _______
Natural stone: Add 100% ______

c.  Number of Exterior walls:
one wall: add 10% _____
two walls add 20% _____

d. Height: no additional factor for 8' or less:
9' height: add 15%  _____
10' height: add 30% _____

Adjusted Cubic Area = a + b + c + d
(If there window or skylight, select next larger steamer)

Example 1: 5' x '5 x 8'. Porcelain tile, one exterior wall
5x5x8=200'. Tile +70', exterior wall +20' = 290' = SMP-7, 7.5 kW steamer

Example 1: 4' x '5 x 9'.
Marble 4x5x9=200'. Stone +200', 9' height +30' = 430' = SMP-10, 10 kW steamer

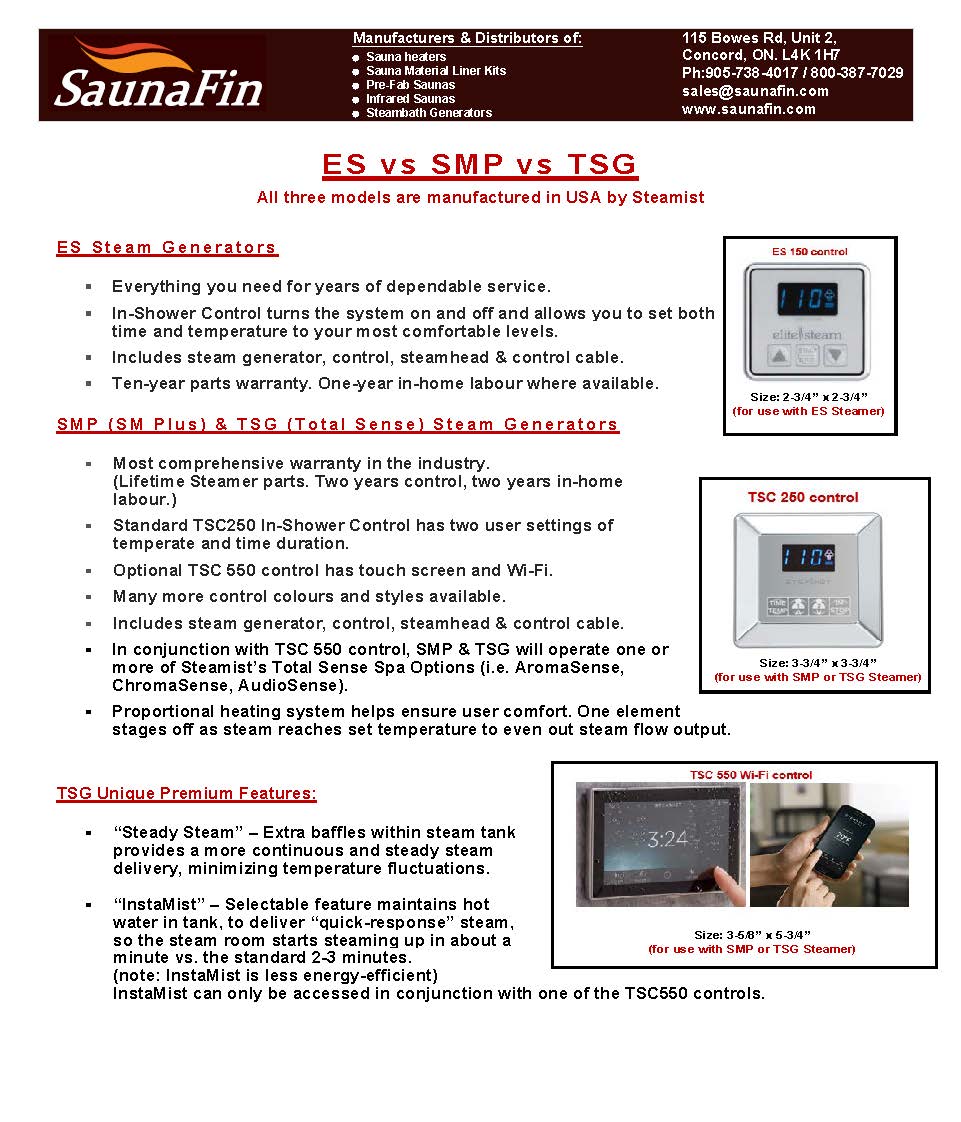

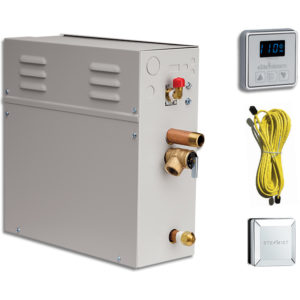

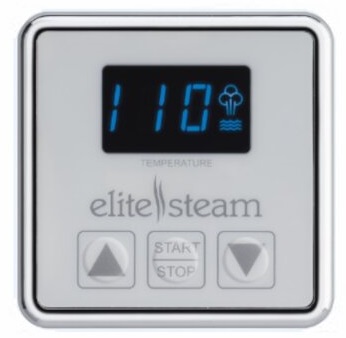

ES Steamer (Elite)

ES Steam control:   EC-150  Series Standard Control

On/Off bottom, temperature control
(Size: 2-3/4" x 2-3/4")

SMP and TSG Steam Generators:

TSC250 Series Control

Programmable for two user profiles with individual temperature/duration preferences.
Will not operate Total Sense Spa Options.
Many color options

(Size: 3-3/4" x 3-3/4")

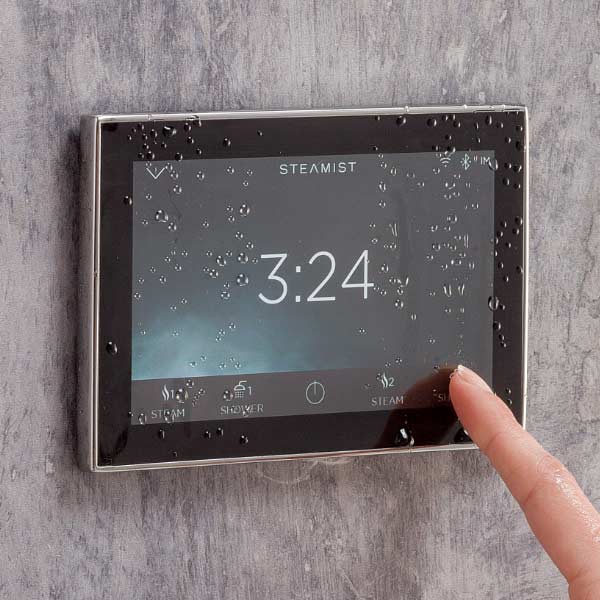

TSC550 Series Control

TSC 550 is a touch-screen, WiFi control.
Available in modern and transitional styles.
Many color options.
TSC 550 required if you plan to add any of the TSC Spa Options (ChromaSense, AromaSense, AudioSense or ShowerSense).
TSC550 can be ordered without Spa options if you simply like the modern look better.
(Size: 3-5/8" x 5-3/4")

Chromatherapy at Home

Let color enrich your steam experience

ChromaSense can turn you on to a spectrum of six steam shower lighting effects to bring about positive physical or psychological change. Compatible with the 550 Digital Steam Control.
ChromaSense Spa Option Control Module: Product Code TSCH.
Supplied with Light Fixture with Polished Chrome Trim Ring. Designer Finish Trim Rings also available.

Six color effects

With one shower light fixture, ChromaSense gives you the choice of selecting white light or six color effects in the steam shower.

Soulful	Bliss	Relax
Creative	Energize	Harmony

AROMASENSE:  HEAL WITH AROMATHERAPY

Add scents of well-being to your steam shower

For centuries, aromatherapy has demonstrated remarkable therapeutic powers, from relaxing body and spirit to soothing respiration to sparking creativity. And only Steamist’s AromaSense adds 100% undiluted essential oils to the steam shower, ensuring your pure pleasure. Compatible with the 550 or 450 Digital Steam Control.
AromaSense Spa Option Control Module: Product Code TSA

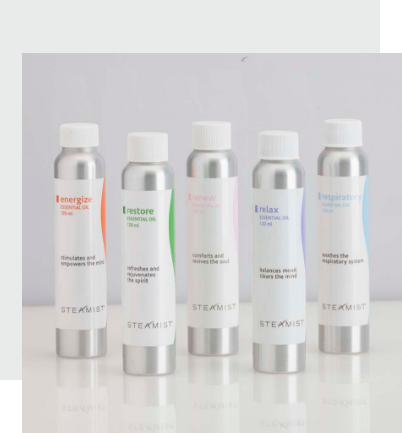

Pure essential oils

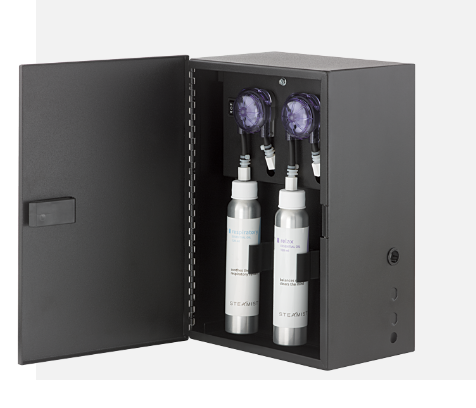

Only Steamist’s AromaSense has a precision pump system that stores two different, easily replaceable essential oil canisters. allowing you to make your “aroma steam” selection without ever leaving your steam room. And only AromaSense uses pure undiluted oils, using just 1/4 of a drop at a time, so each canister will last for months. Five essential oils are available in 100 ml canisters (sold separately).
Two essential oil canisters should be purchased for installation with the AromaSense module.

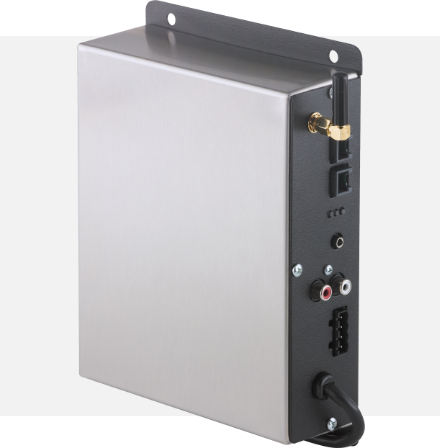

AUDIOSENSE: EXPERIENCE SOUND AND STEAM

With AudioSense you can enjoy your favorite music in the steam shower from your computer, smartphone, iPod tablet or any other Bluetooth-enabled music player. Compatible with the 550 or 450 Digital Control. 550 Digital Controls links directly to Pandora®, Spotify® or iHeart® music streaming services. Speakers sold separately.

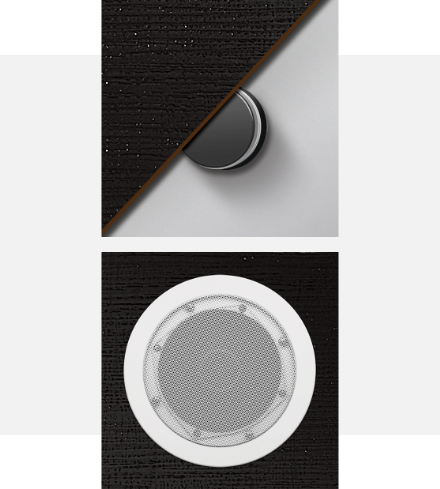

Speaker Options

• Two "Invisible" Speakers
• Mount out of sight and transmit sound through the wall.
• 3" diameter. Product Code TSS-IN
• Two "Classic" Exposed Speakers
• Surface mount.
• 5.25: diameter, 8" outside diameter. Product Code TSS-CL

ShowerSense:

The Cleaner Choice

Cluttered Conventional Shower

A standard showerhead, handheld shower and body sprays require multiple controls and a cluttered, crowded enclosure.

Uncluttered ShowerSense System

With ShowerSense, one control covers all steam and shower functions, for a beautiful shower retreat without multiple shower controls.

Our Digital Shower System allows you to enjoy the benefits of ShowerSense without installing a steam generator and steamhead.

Ultimate Shower Options

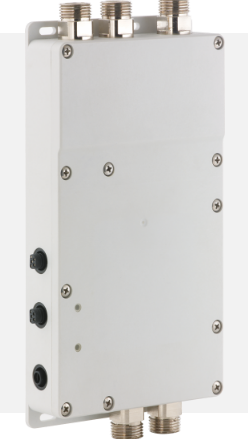

ShowerSense lets you enjoy the steam experience, plus your choice of three luxury shower options. The 550 Digital Control lets you select either of two different shower temperatures, and gives you total touchscreen command over all steam and shower functions, without the clutter of multiple shower controls. The ShowerSense Valve is easy to install in any position behind the wall, and is both temperature compensating and pressure-balanced to optimize user comfort.

ShowerSense Spa Option Valve: Product Code TSSH
