Sauna Craft

Sauna Craft offers a full range of sauna heaters:

wall mounted and floor standing sauna heaters

Click on the TABS below heater selection to see additional details for Sauna Craft heaters

Read More

  • Sauna Craft Features
  • XR Model Warranty
  • Sauna Craft Manuals
  • Sizing & Specifications
  • Why A Sauna Kit
  • Freight - Heaters

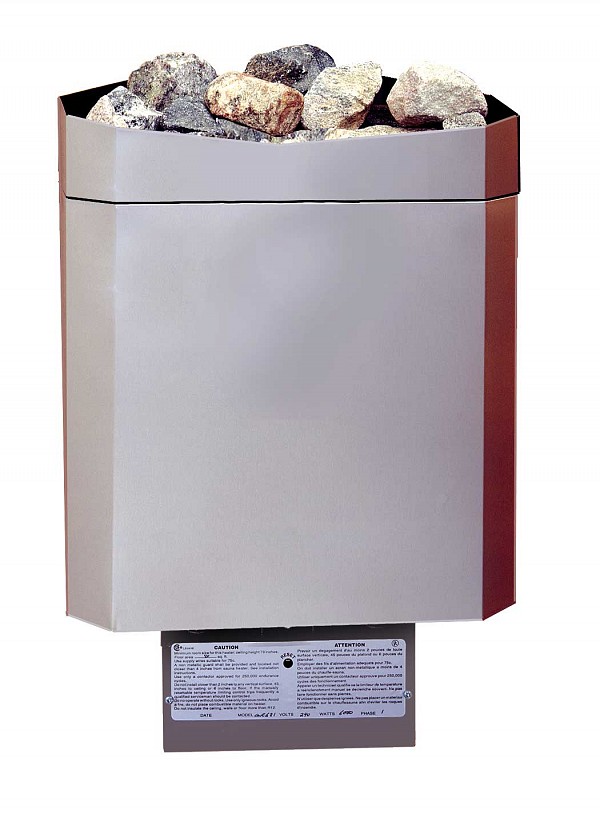

SAUNA CRAFT CWM SERIES (with external control)

CWM model is 100% surgical stainless steel. Wall or Corner hung.
Use with exterior control (TPT3 mechanical or EL-13 Electronic control).

Starting at: $1000.00
SAUNA CRAFT CW-XR SERIES (with external control)

XR model is100% surgical stainless steel. Deep rock basket for extra sauna stones. Use with TPT3 or EL-13 exterior control.

Starting at: $1175.00

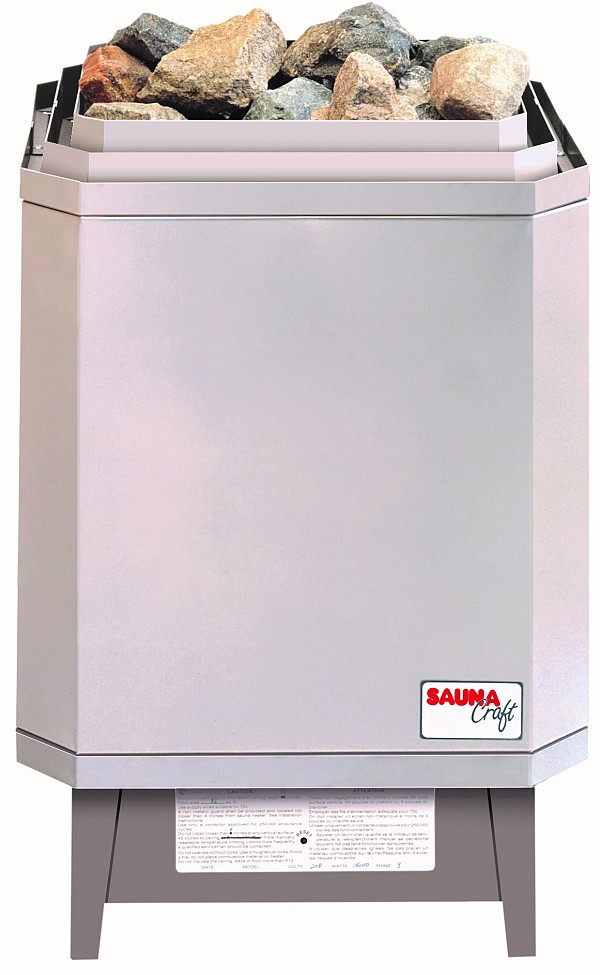

SAUNA CRAFT FM SERIES (with external control)

Floor Standing 100% surgical stainless steel. Use with TPT3 or EL-13 exterior control.

Starting at: $2000.00
SAUNA CRAFT FM-XR SERIES (with external control)

XR model is100% surgical stainless steel. Deep rock basket for extra sauna stones. Use with TPT3 or EL-13 exterior control.

Starting at: $2415.00

Click on the TABS below to see additional details for Sauna Craft heaters

  • Sauna Craft Features
  • XR Model Warranty
  • Sauna Craft Manuals
  • Sizing & Specifications
  • Why A Sauna Kit
  • Freight - Heaters


(for saunas up to 450 cubic feet)
(4kW to 9kW)  (Exterior Controls)

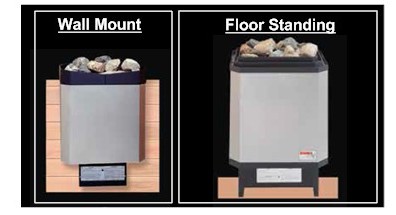

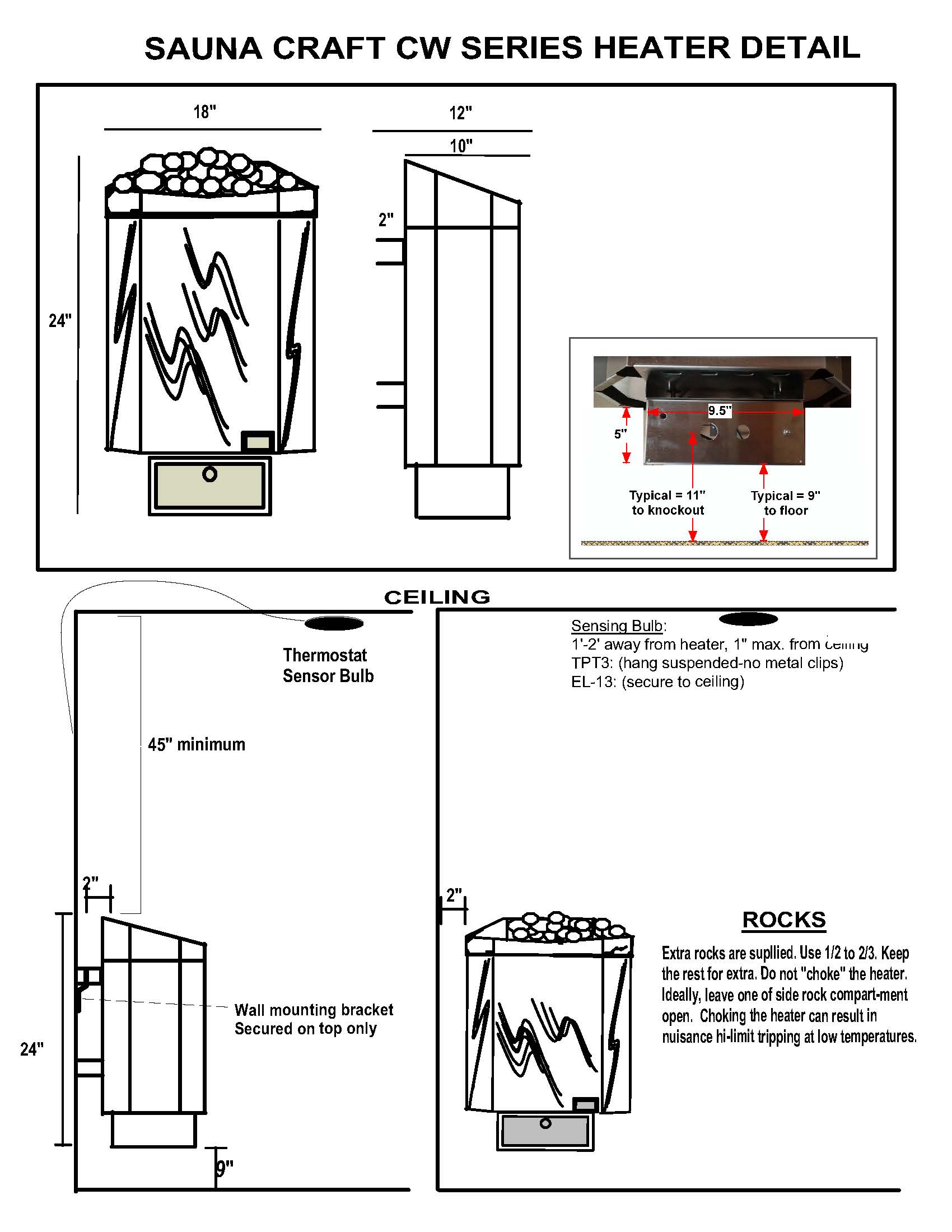

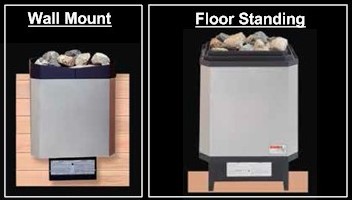

CW Wall Hung - Wall or Corner mounted
Stainless Steel (304) shell and inner baffles

CWM:

100% Stainless Steal.

CW-XR:

100% Stainless Steal.
Deep Rock Compartment
Extended Warranty

Warranty

CWS/CWM:

Residential Warranty: 5 years.

Commercial Warranty:

1 year

CW-XR: Residential Warranty:

Lifetime.

Commercial Warranty:

3 year





(for saunas over 450 cubic feet)
(12kW to 18kW)

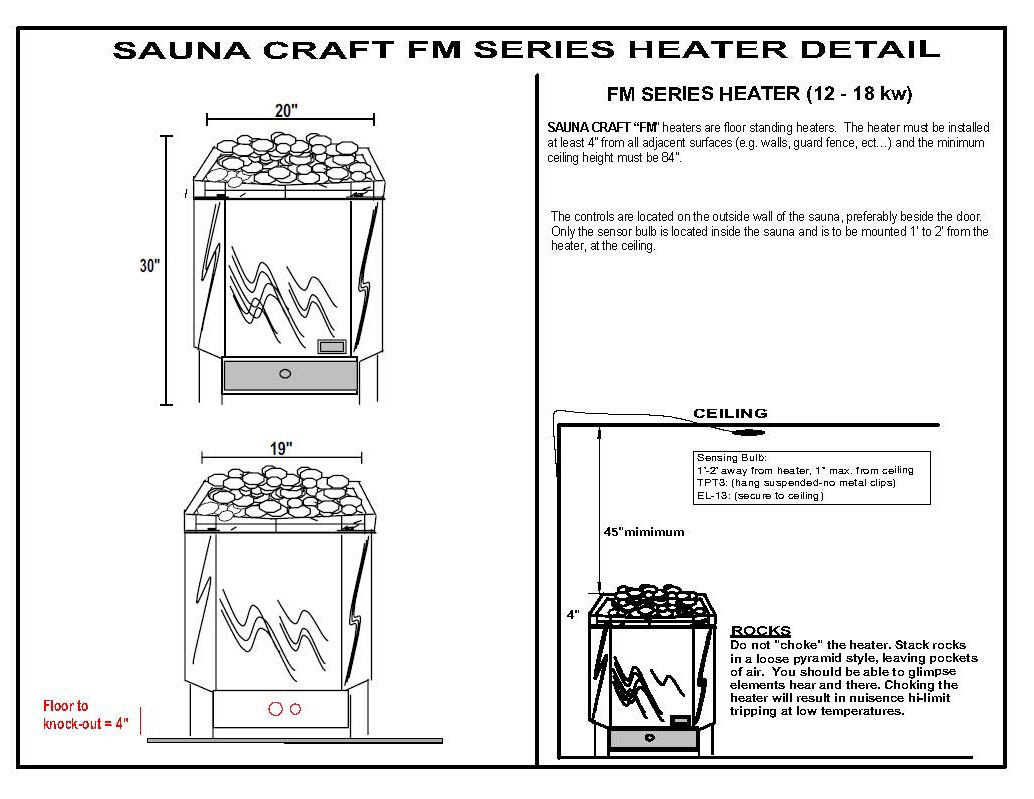

FM Floor Standing (Exterior Controls)
Stainless Steel (304) shell and inner baffles

FM:

100% Stainless Steal.

FM-XR:

100% Stainless Steal.
Deep Rock Compartment
Extended Warranty

Warranty

CWS/CWM:

Residential Warranty: 5 years.

Commercial Warranty:

1 year

CW-XR: Residential Warranty:

Lifetime.

Commercial Warranty:

3 year

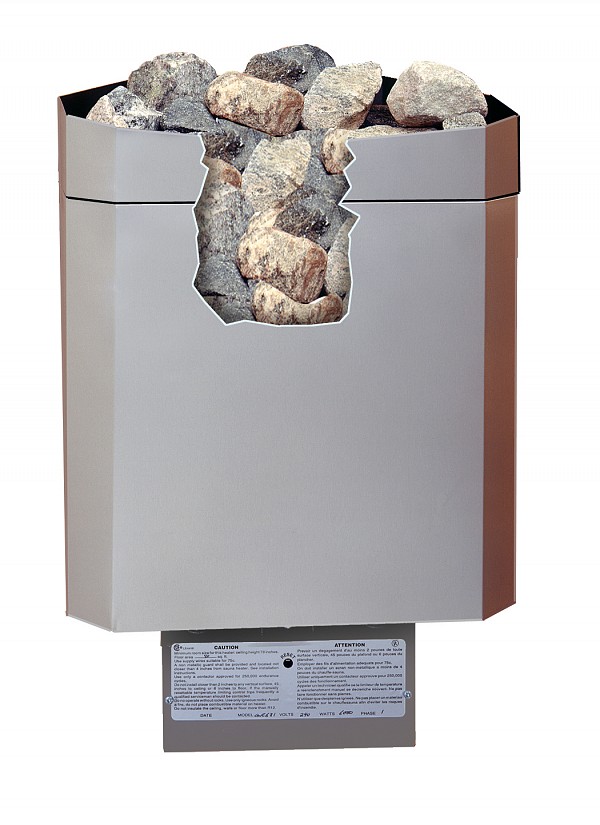

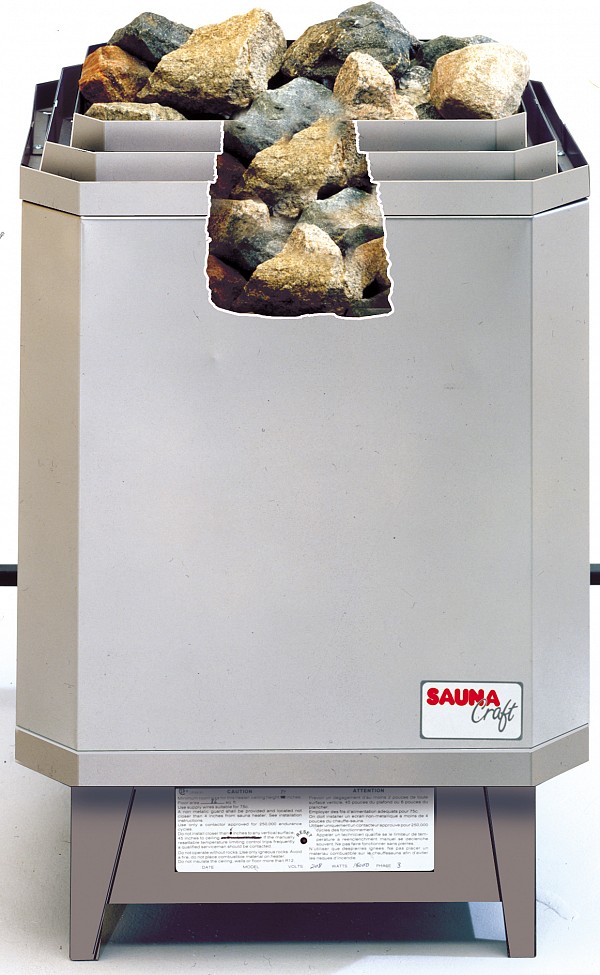

XR Model Heaters - Deep Rock Basket

CW-XR and FM-XR have deep mesh rock basket
Vertical column of rocks and better vaporization

Sauna heater xr model deep rock basket

Sauna Craft offers the best warranty in the industry.

Residential models for home use (240 volt, 1 phase)
CWM & FM carry our standard five-year warranty.

CW-XR & FM-XR carry a Lifetime warranty on heating elements. Send back the broken part and we will send a replacement.

Be aware that some other's "lifetime" warranties may not be what they appear. If it's important to you, ask for details.

Some sauna heater manufacturers demand that you send the heater back to the factory for warranty repair. We find this to be preposterous. Expecting you to disconnect and ship a sauna cross country is an absurd expense. It is a disreputable tool intended to avoid providing quality service to customers.

Yet another heater offered with a lifetime warranty, considers the element to be a "consumable" product and such does not warranty the element.

Commercial models for public use (208 volt, 3 phase)
Commercial saunas receive intensely more abuse than do residential. So while we cannot offer the same warranty coverage, we still provide industry leading coverage for our CW-XR-C & FM-XR-C models.

CWS, CWM, FM carry our standard one-year warranty. (There is 30 days warranty on the elements).
CW-XR-C & FM-XR-C carry a Three-year warranty on heating elements.
(To our knowledge, no other sauna manufacturer offers a commercial warranty beyond one year).

Online prices are for residential models. Contact us for pricing on CW-XR-C and FM-XR-C commercial models.



* Heater Sizing Chart
SIZE (Watts)VOLTSPHASEAMPSFUSING

WIRE
(Copper)

MIN
(Cubic)

MAX
(Feet)

4000240116.73010100150
5000240120.83010150250
60002401253010200300
6000208316.63010200300
7500240131.3408290375
7500208320.93010290375
9000240137.5508360450
9000208325408360450
12000240150706450700
12000208333.4508450700
15000240162.5804600900
15000208341.7606600900
18000208350.37067501050

* Wire size/Breaker is recommendation only. Confirm with your licensed electrical contractor.
sauna craft sw series sauna heater

sauna craft sw series sauna heater details



ADVANTAGES TO A SAUNA MATERIAL KITThe Sauna Material Kit provides all the special components necessary to properly and easily build your sauna. The sauna kit provides specific cedar lengths. Builder supply warehouses and lumber yards generally carry only 8' or random lengths which creates a lot of waste. The sauna kit also includes such items as cedar molding and door casing which are not readily available.
At Saunafin, our sauna kits have no seams.  We provide only full-length boards (up to 8')

COSTWhen using Clear Cedar for your sauna, there is no better value than one of our home sauna kits.  Lumber supply and Big Box Building warehouses, carry either premium priced 8' or random length (6'-20') (if they carry clear cedar at all).  Saunas are generally small rooms.  Most use 4',5',6' and 7'. Major mills set aside these high quality "shorts" as less valuable. Well, not for saunas.  Saunafin orders truckloads of shorts at preferential prices and we pass those savings on to our customers.
When purchasing a Saunafin material kit, the heater and door are included at wholesale price levels, making the kit that much more valuable.
Purchasing a kit vs. buying your sauna "a la carte" will generally save you $400-$800.

SAUNA KIT VERSATILITYSauna material kitIt is easy to customize a sauna material kit. If the sauna is part of a larger renovation; such as a finished basement, or addition, it is easy to incorporate the sauna kit into whatever space is available. The sauna can be installed to suit particular settings; for example, the exterior can be drywall and painted to match the outside decor of a bathroom.

NOTHING COULD BE EASIERWith the Saunafin Material Kit, building a sauna is one of the simpler do-it-yourself projects. Our rule of thumb is: If you can erect the stud framing, you will have no problem installing the sauna kit. It is designed specifically for the do-it-yourselfer and renovator. The bench framing, heater guard, and moldings are pre-cut. We even include the galvanized nails. If you have not built a sauna before, you will find the instruction booklet and drawings easy to follow.

DO I HAVE TO USE WESTERN RED CEDAR FOR MY SAUNA?While other materials are occasionally used, Western Red cedar is by far the most popular, most attractive and most durable. Cedar has a mild, pleasant fragrance that many people associate with saunas. Western Red cedar's particular properties allow it to expand and contract. This is important in a sauna where the wood is exposed to extremely high, dry temperatures, interspersed with blasts of humidity when water is splashed on the heater or the walls.

QUALITYOur Clear cedar material kits use only kiln-dried, clear, grade 'A' and better, tongue & groove Western Red cedar. The cedar is thick enough to ensure maximum strength & durability and finished on two sides to provide for the best overall finish. Our most popular material kits use 2 x 4 Clear cedar for benches and bench framing (unlike most others who use 1 x 4).
(Our LK Prime Knotty sauna kits use only STK (select tight knot) Westerrn red cedar for lining and clear cedar for the benches)

HOW LONG WILL IT TAKE TO BUILD THE SAUNA?The installation time will vary somewhat with the size of the sauna and the package & options selected. On average, the sauna kits are installed in 14 - 20 hours. With the specified lengths, pre-sorted components and pre-hung door, you will save at least 4 - 8 hours on your installation time.



Heater Freight Estimate

CANADA
Most Heaters are picked up at our factory.  Shipping will be about $50.00 to $100.00 depending on destination.

UNITED STATES
Freight will be confirmed before the the order is finalized.
The U.S. heater freight table below is an estimate based your part of the country.
For zones 1 through 5, freight is included for wall hung heaters.  There is freight surcharge for zones 6-10
and Large Heaters.

Heater

   Sauna Craft
(CM & CW-XR)

Saaku (CP)

 Tylo
(Sport & Plus)

Tylo
(Combi)

           FM & Pro                  (Floor Standing)

Zone 1

Freight Included

Freight
Extra

Zone 2

Zone 3

Zone 4

Zone 5

Zone 6

$50.00

Zone 7

$50.00

Zone 8

$75.00

Zone 9

$75.00

Zone 10

$75.00
