ES EASY STEAM
- A great selection for those who are just looking for quality steam generator without the bells and whistles.
- Waterproof temperature control mounts inside steam shower
- Elite Steam is American made to the highest quality standards.
- A full range of sizes from 7.5kw up to 15 kw
- Control avaialble in polished chrome.
- UL & CUL approved for Canada and USA
- Excellent Warranty. Purchase with confidence. (Ten-year parts, one year on control).
- ES Steam Sizing
- ES Steam Installation Manuals
- ES Steam Control
In-Shower Control for time and temperature.

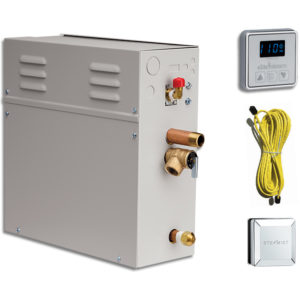

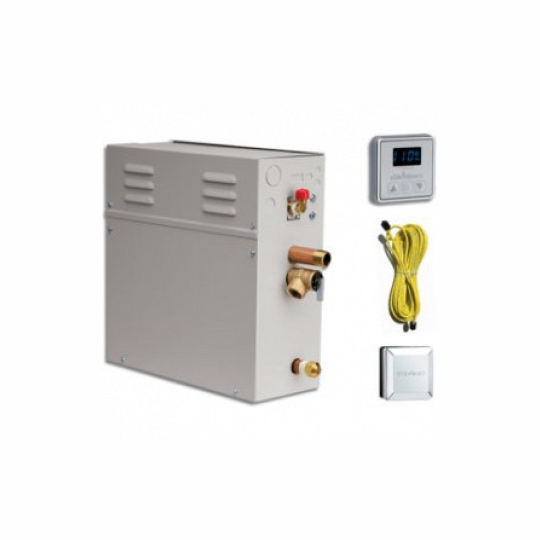

Generator, control, steamhead & cable.
Ten-year parts warranty. One year labour.
Polished Chrome Elite temperature control and matching steamhead.
- ES Steam Sizing
- ES Steam Installation Manuals
- ES Steam Control
| KW Rating | * Max. Cu.Ft. Range | Model Dimensions L"xW"xH" |
| 7.5 | 250 | 15 x 6 x 15.5 |
| 10 | 450 | 15" x 6" x 15.5" |
| 12 | 550 | 17.75 x 7.5 x 15.5" |
| 15 | 675 | 17.75 x 7.5 x 15.5" |
Sizing Your Steam Generator
Steam sizing is more than just cubic area. You must factor in things like wall finish (tile vs. stone), exterior walls and height to arrive at the correct "Adjusted Cubic Area".
To “size” the right generator, we start by asking for some basic information about the space you’ll be using for your steam shower.
Length x Width x Height (in feet) of the steam enclosure to determine cubic footage.
For optimum performance, ceiling height should not exceed 8'. The maximum recommended ceiling height is 10'.
a. L x W x H = _______
"Adjusted Cubic Area" is determined by a number of factors.
b. Wall material:
Tile: ceramic / porcelain / glass / glass block. Add 35% _______
Natural stone: Add 100% ______
c. Number of Exterior walls:
one wall: add 10% _____
two walls add 20% _____
d. Height: no additional factor for 8' or less:
9' height: add 15% _____
10' height: add 30% _____
Adjusted Cubic Area = a + b + c + d
(If there window or skylight, select next larger steamer)
Example 1: 5' x '5 x 8'. Porcelain tile, one exterior wall
5x5x8=200'. Tile +70', exterior wall +20' = 290' = 7.5 kW steamer
Example 1: 4' x '5 x 9'.
Marble 4x5x9=200'. Stone +200', 9' height +30' = 430' = 10 kW steamer
- ES 7.5 & 10 KW Specification
- ES 7.5 & 10 kW Installation Manuals
- ES 12 & 15 KW Specification
- ES 12 & 15 kW Installation Manuals
| KW Rating | Max. Cu. Ft. Range | Volts/ Phase | ** 90c Copper Wire Size | Amps/ | Model Dimensions L"xW"xH" |
| 7.5 | 250 | 240/1 | 8 | 31/40 | 15 x 6 x 15.5 |
| 10 | 450 | 240/1 | 6 | 42/50 | 15" x 6" x 15.5" |
| 12 | 550 | 240/1 | 4 | 50/60 | 17.75 x 7.5 x 15.5" |
| 15 | 675 | 240/1 | 3 | 63/80 | 17.75 x 7.5 x 15.5" |
** Wire/breaker size is recommendation only.
Consult your licensed electrician to confirm requirements.
